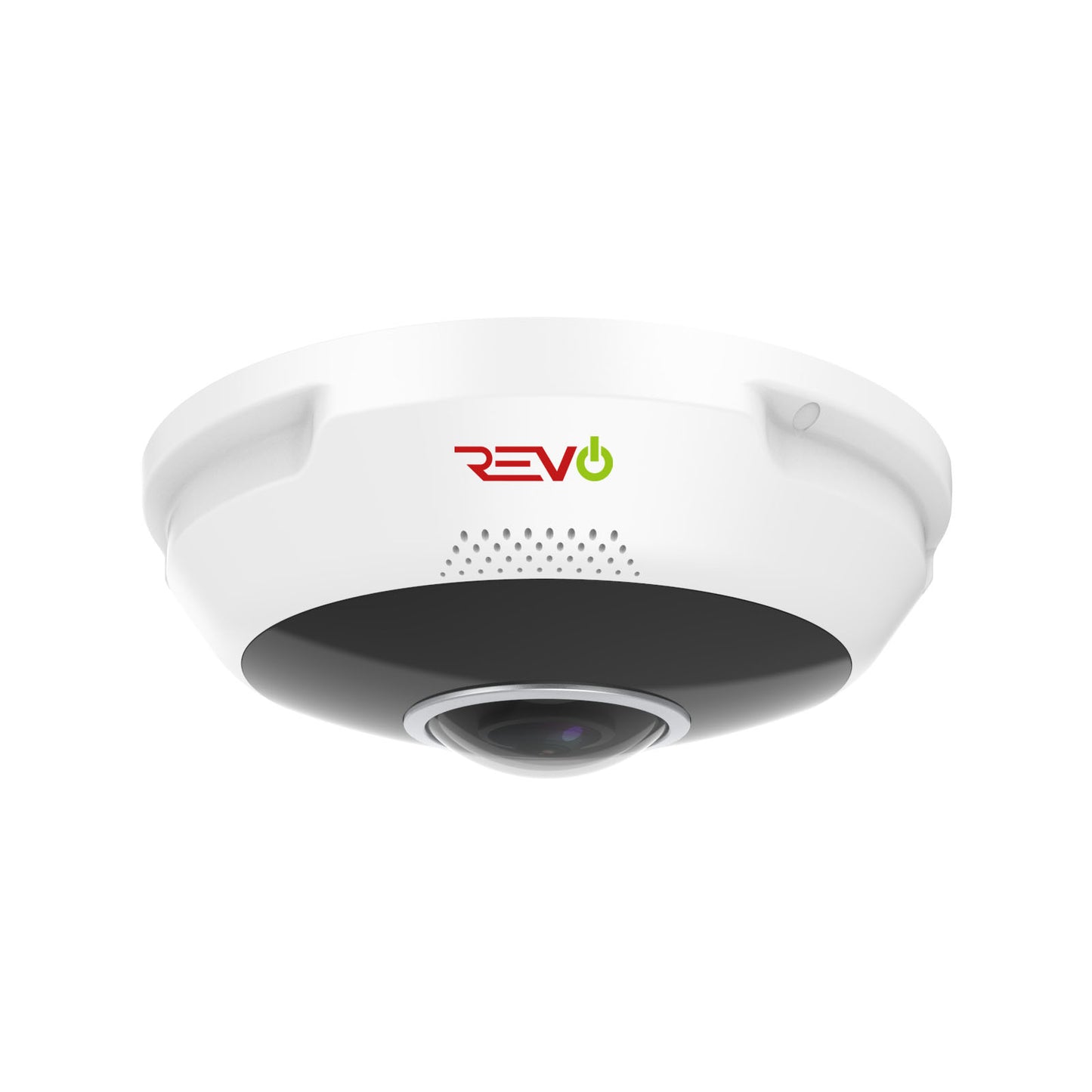

Ultra Plus HD 4K IP Indoor/Outdoor Audio Capable Fisheye Dome Surveillance Camera with 360° Panoramic Coverage
Ultra Plus HD 4K IP Indoor/Outdoor Audio Capable Fisheye Dome Surveillance Camera with 360° Panoramic Coverage
SKU:RUCFE4K-1C
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Quick Features
Overview
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra Plus offers additional features perfect for professional and premium residential applications. The RUCFE4K-1 Revo Ultra Vandal Resistant Fisheye Fixed lens Dome Camera delivers incredible True 4K (3000*4000) video quality - double the resolution of 4 Megapixel. The ultra wide angle lens provides a 360° panoramic image. The RUCFE4K-1 comes equipped with a built-in microphone & speaker for two way audio support. The embedded IR LEDs are specifically designed to cover a 360° field of view and will illuminate the scene up to 75 feet in total darkness. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -30F, rain or shine. The RUCFE4K-1 steps up its powerful security with IK10 vandal resistant engineering. When it comes to surveillance, every detail counts. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
| Camera | |
|---|---|
| Image Sensor | 1/1.7", progressive scan, 12.0 megapixel, CMOS |
| Lens | 1.8mm@ F2.4 |
| Shutter | Auto/Manual, shutter time：1/6 s ~1/100000 s |
| Minimum Illumination | Colour: 0.05 Lux (F2.4, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter for day & night function |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 10 m (33 ft) |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Fisheye Frame Rate | Main Stream :15 fps(4000×3000, 3000×3000), 25 fps(2560×2560); Sub Stream: 15 fps(2000×1500, 2000×2000), 25 fps(2000×2000); Third Stream: 15 fps(720×576, 320×288) |
| Panorama | 25 fps(3000×2000); 15 fps(4000×3000,3000×2000,3000×1500) |
| Frame Rate PTZ | 15 fps(1920×1080) |
| ROI | Up to 8 areas |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Live View Display | |
| Mount Type | Support table, wall, and ceiling |
| Display Mode | Support 10 display modes in total (including display modes of mount types and decoding modes): Display Mode:Original Image, Fisheye+4PTZ, Panoramic Preview Mode: Original Image , 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ , Fisheye+4PTZ, 360° Panoramic+6PTZ, Fisheye+8PTZ |
| Interface | |
| Audio I/O | Audio interface |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Multiple Alarm linkage editable | |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| Serial | 1 channel RS485 interface |
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | DC12V±25%, PoE（IEEE802.3af） |
| Power consumption: Max. 21W | |

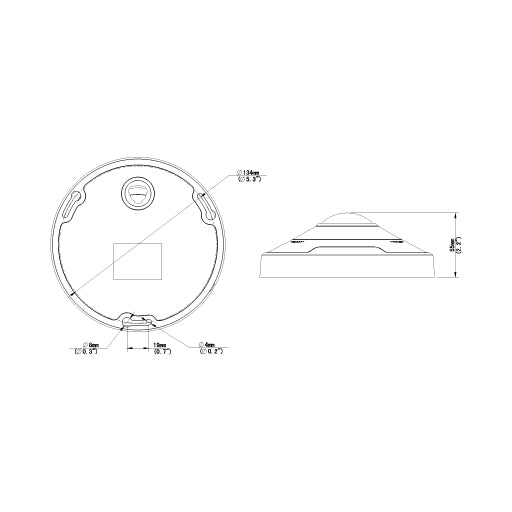

| Dimensions(Ø x H) | Φ149mm x 55mm (Φ5.87” x 2.17”) |
| Weight | 0.5kg(1.1lb) |
| Working Environment | -35℃~60℃(-31°F ~ 140°F), Humidity :10%~90% RH |
| Vandal Resistant | IK10 |
| Ingress Protection | IP66 |
| Reset Button | Supported |
